Umbra
CHAPTER IV
Swordsman
INSPIRATION
Born from struggle and embodies raw willpower refined into form. Its surface is finished in a deep obsidian black, a reflection of resilience carved through battle. Beneath, a brushed blackened steel weight anchors the piece with a presence that is unyielding in both form and spirit.
MATERIALS

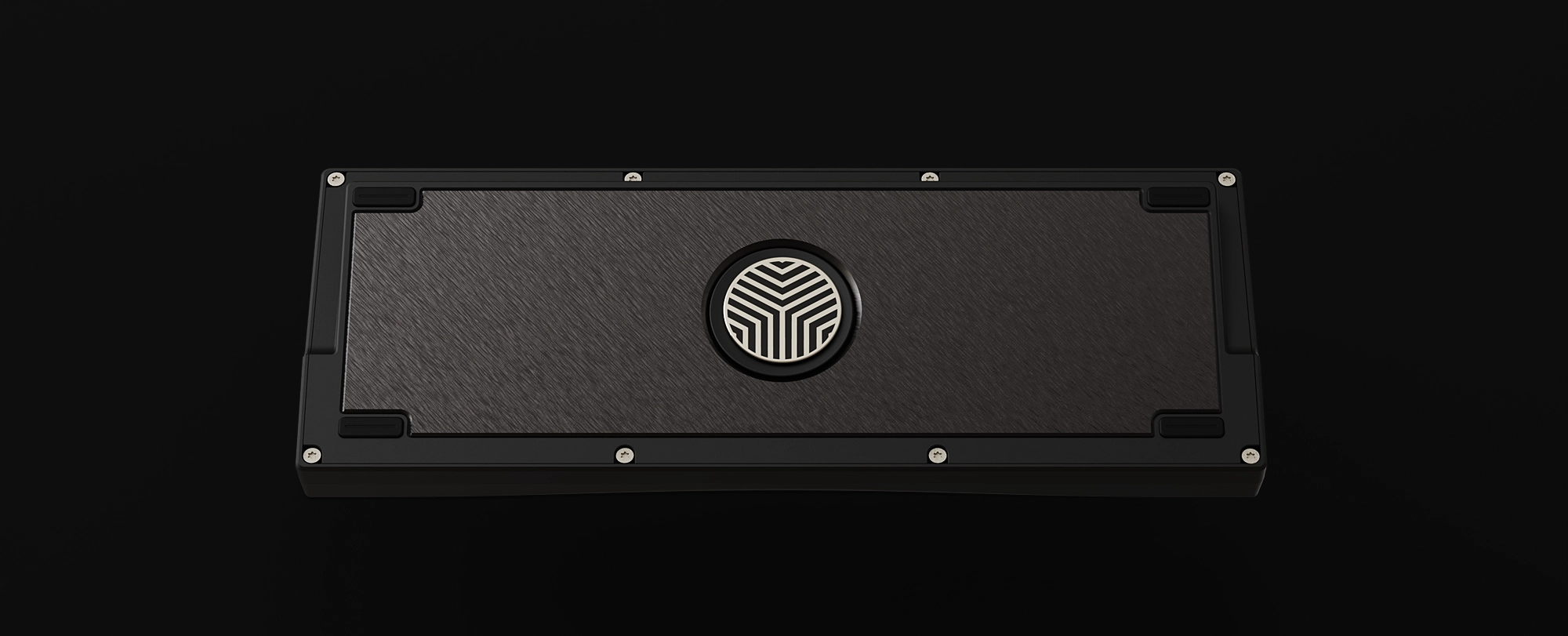

Chassis is machined from 6000 series aluminum for superior quality; it is finished with a custom surface blasting and black anodizing. The weight is made from stainless steel which has been glass blasted, brushed and pvd coated.

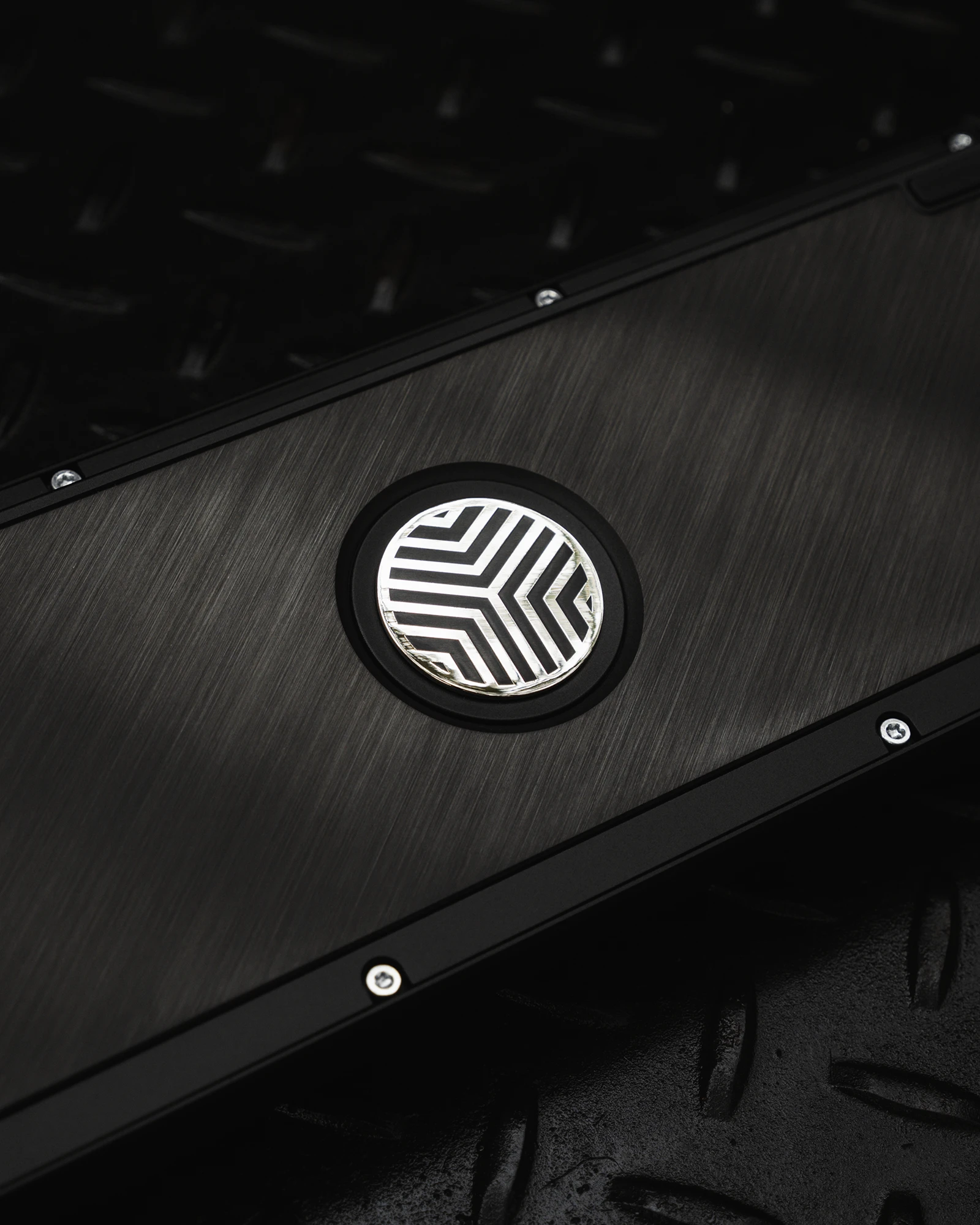

Marking its core is the Armor emblem, sculpted with brutal elegance, a symbol of defiance and survival against impossible odds. This part is forged, enameled with jet black, plated with silver, and polished by hand.
DESIGN
8° chassis with minimal front height for maximum typing comfort. Integrated 8 point silicone force break to prevent unpleasant resonance. Sound travels uninterrupted between PCB and bottom aluminum case, producing a uniform and bright sound signature.
Offering three different mount systems, each with optimized locations. Magnetic, swappable back pieces and Cable Shield for straightforward build process.
Layout
60% WK / WKL / HHKB
Front Height
8° / 18 mm / EKH 22 mm
Mass
1350 g / 3 lbs (Unbuilt)
Dimension
296 mm x 114 mm
Hardware
Torx T10
Authentication
TAP
Mount
Tadpole / Top / Gummy
Plate
Aluminum leaf-spring
PCB
1.6 mm FR4 / Solder / Hotswap
Connect
Type-C Fly DB by WOLF
Lighting
LED array underglow
Firmware
QMK / VIA
