BMW
Year
1976
Model
- R100/7
Build
- 8 months
From the grave.
This project started as a rolling frame, 4 boxes, and short conversation on the bike’s history. It was purchased in Pennsylvania from the son of the original owner after his passing. The bike was taken by the new owner to a custom shop where it was taken apart to be restored which never happened, hence the boxes.
Design
76 was the first year of the iconic R100 and was equipped with some rare trims. Efforts were made to not only restore but also to improve performance. The color theory was directly inspired by this narrative, modern classic.
Nardo Grey
paint
Black Jack
frame
Oiled Bronze
wheels/leather
Redeemer
Over 8 months this airhead has now been redeemed. Full frame-off rebuild with new paint and powder coating everywhere. Every component has been serviced or replaced, breathing new life into this icon.
Frame
- Frame detabbed, smoothed and powder coated
- Front forks rebuilt, shortened and powder coated
- New steering bearings
- Powder coated triple tree
- Renthal ultra low bars internally wired
- Handcrafted aluminum fairing and fender
- YSS rear shocks designed for bikes new weight
- Rebuilt caliper with new pads and seals
- New master cylinder with stainless lines and fittings
- Rebuilt powder coated wheels with new stainless spokes
- TKC80 scrambler tires
Engine
- Hand polished
- Top end serviced
- Valve and timing adjusted
- Carburetors rebuilt
- New throttle, choke, and clutch cables
- All fluids and filters changed
- New case rubbers and trim
- New exhaust nuts and rings

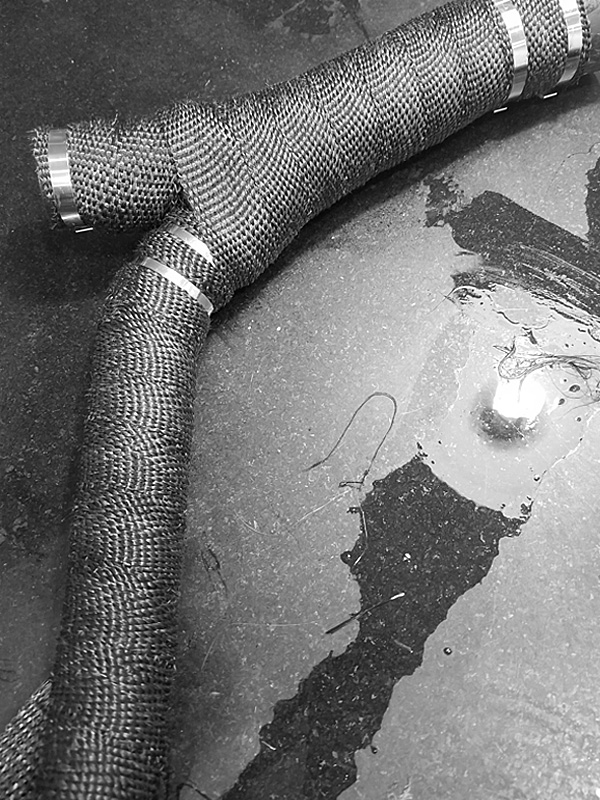

- 2 into 1 ceramic painted headers
- Titanium header warp
- Stainless steel muffler
- NGK plugs and wires
Electronics
- Motogadget M-Unit Blue
- Motogadget M-Button
- Motogadget Motoscope PRO Dashboard
- Billet aluminum bar controls
- Custom wiring harness
- LED projection headlight
- LED bar-end turn signals and marking lights
- LED high-viz taillight
- LED trail lights
- USB phone charger
- Billet battery box
- Lithium ion battery
Trim
- Nardo grey paint
- Fiberglass seat pan wrapped in full-grain Italian leather
- Under seat document pouch
- Biltwell grips
- Passenger pegs
- Stainless steel hardware
- Billet aluminum fuel cap
- New petcocks
- All new trim
